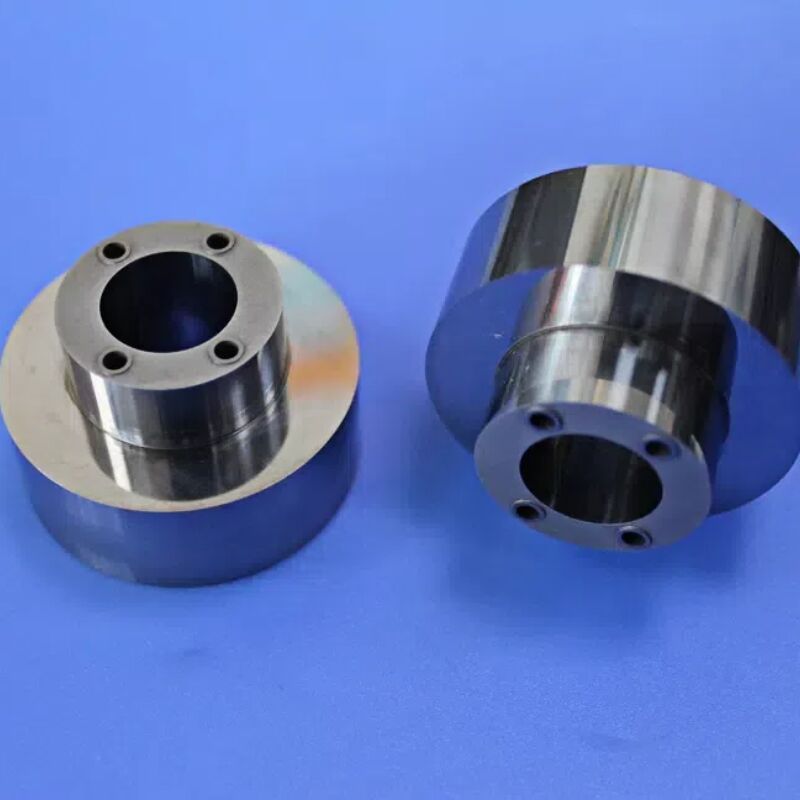

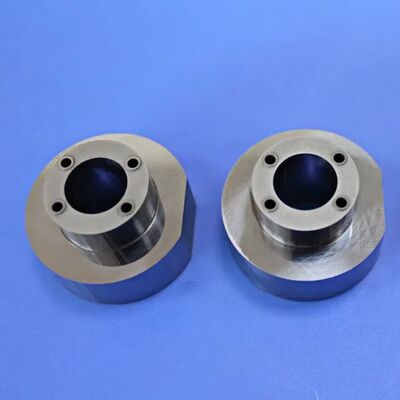

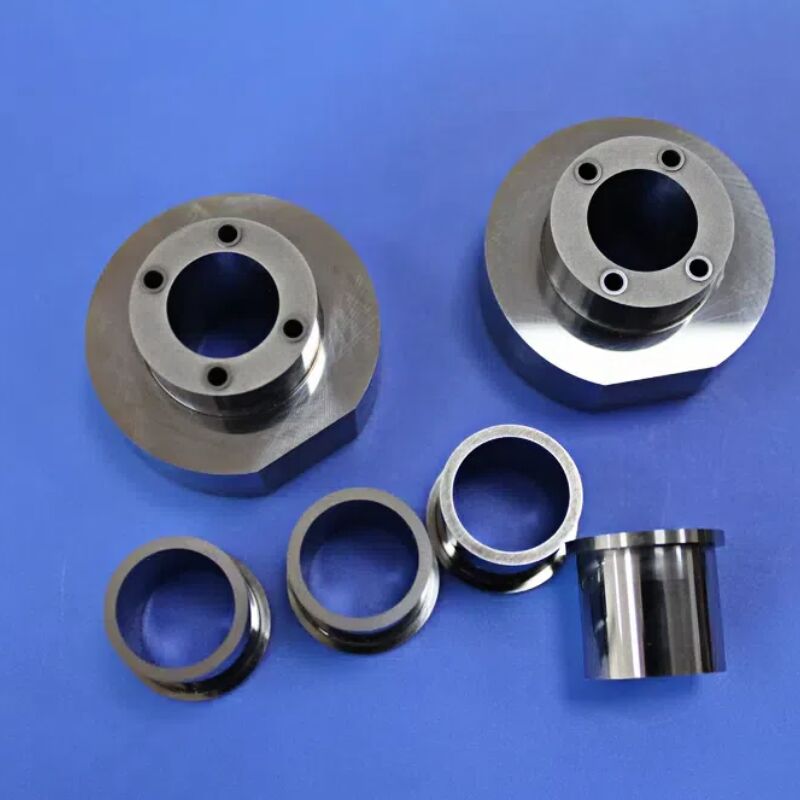

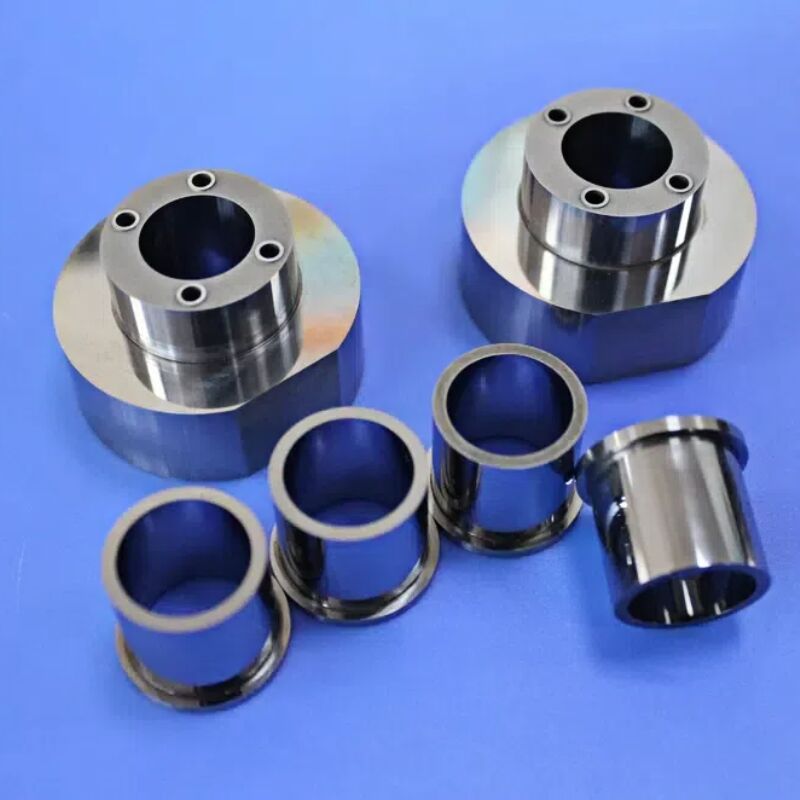

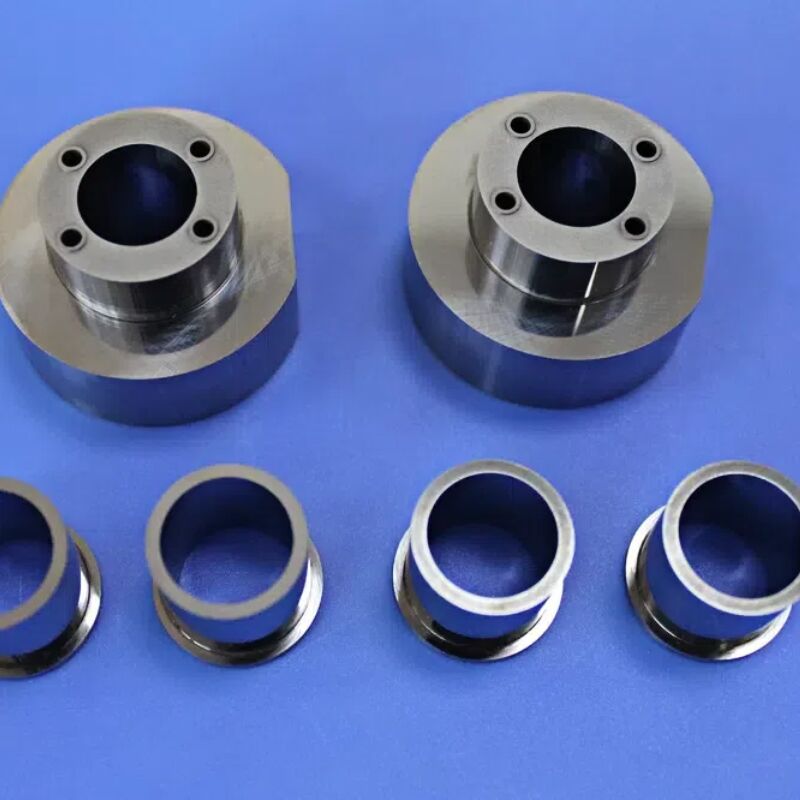

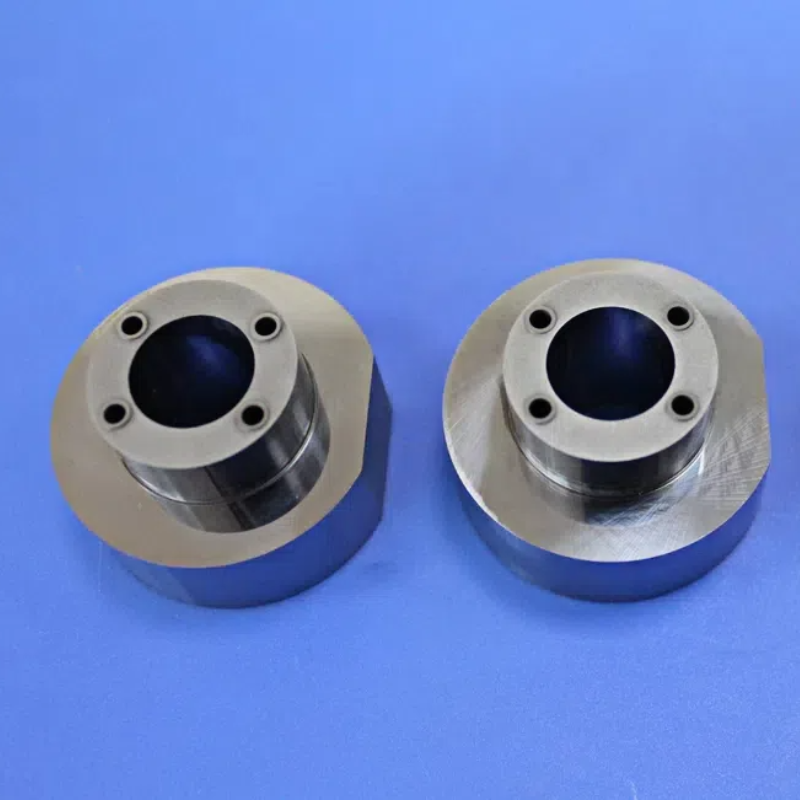

Non-Magnetic Ultra-Precision Tungsten Carbide Guide Block with High Wear Resistance for Sensitive Environments
Non-Magnetic Ultra-Precision Tungsten Carbide Guide Block with High Wear Resistance for Sensitive Environments Non-Magnetic Ultra-Precision Tungsten Carbide Guide Block with High Wear Resistance for Sensitive Environments Non-Magnetic Ultra-Precision Tungsten Carbide Guide Block with High Wear Resistance for Sensitive Environments Non-Magnetic Ultra-Precision Tungsten Carbide Guide Block with High Wear Resistance for Sensitive Environments Non-Magnetic Ultra-Precision Tungsten Carbide Guide Block with High Wear Resistance for Sensitive Environments

Non-Magnetic Ultra-Precision Tungsten Carbide Guide Block with High Wear Resistance for Sensitive Environments

Ürün ayrıntıları:
Marka adı: Sanxin
Model numarası: SX1286
Ödeme & teslimat koşulları:
Min sipariş miktarı: 2
Teslim süresi: 5-25 gün
Ödeme koşulları: T/T
Şimdi başvurun
  • Detay Bilgi
  • Ürün Açıklaması

Detay Bilgi
Çalışma sıcaklığı: -200 ° C ~ +800 ° C Yüzey: Cilalı
Korozyon direnci: Harika Karbür Sınıfı: K20/K30/K40/YG8/YG11C/YG13C/YG15C vb.
Uygulamalar: Kesici takımlar, aşınma parçaları, madencilik takımları Yüksek sertlik: HRA92
Alaşım Spesifikasyonu: YG6/YG8/YG8C/YG11/YG11C İşletme Türü: Üreticisi
Darbe Dayanımı: Harika Avantaj: Yüksek aşınma direnci
Boyut: Özel yapılmış Süneklik: İyi süneklik ve işlenebilirlik
Vurgulamak:

Non-Magnetic Guide Block

,

Ultra-Precision Linear Guide Component

,

High Wear Resistance Tungsten Carbide Sleeve

Ürün Açıklaması

WC-Ni Guide Blocks Ultra-Precision Linear Guide Component For Sensitive Environments
Non-Magnetic Tungsten Carbide Precision Guide Block
Engineered for Perfect Linearity Where Magnetic Fields Are the Enemy. In the realm of ultra-precision machinery—from medical MRI scanners to semiconductor lithography—conventional guide components introduce risk. Magnetic interference can distort sensitive measurements, while wear compromises accuracy over time. Our Non-Magnetic Tungsten Carbide Guide Block is the definitive solution. Crafted from specialized WC-Ni alloy and finished to optical-grade flatness, it delivers absolute magnetic neutrality, exceptional wear resistance, and unparalleled geometric stability for the most demanding linear motion applications.
The Non-Magnetic Imperative
True performance begins at the material level. By utilizing a Nickel (Ni) based binder instead of Cobalt (Co), we eliminate ferromagnetism from the tungsten carbide matrix. This ensures your sensitive equipment operates without magnetic "noise" or attraction.
Material Properties Comparison
Material Property Our WC-Ni Guide Block Benefit to Your Application
Magnetic Permeability (µ) < 1.002 (Certified) Zero interference in MRI, electron microscopes, and sensitive lab environments.
Hardness 90 - 92 HRA Exceptional wear life, outperforming tool steel by a factor of 50x or more, minimizing maintenance.
Compressive Strength > 4500 MPa Withstands high preload forces without deformation, ensuring long-term accuracy.
Thermal Expansion Coefficient ~5.5 x 10⁻⁶/K Extreme dimensional stability across temperature fluctuations common in precision systems.
Corrosion Resistance Excellent Resists coolants and mild chemicals, suitable for cleanroom and medical use.
Standard Features
  • Ultra-Flat Guide Surfaces: Machined and lapped to flatness and parallelism better than 2 µm over the entire length.
  • Precision Mounting Holes: Tapped or through-holes with tight positional tolerances (±0.005mm) for flawless integration.
  • Critical Edge Preparation: All edges are precision broken or chamfered to prevent chipping and ensure safety.
  • Surface Finish: Guide surfaces can be finished from Ra 0.4 µm (ground) to Ra < 0.05 µm (super-finished/lapped) for optimal sliding characteristics.
Common Configurations (Fully Customizable)
Type Description Best For
Linear Guide Block Rectangular block with one or more precision-ground guiding faces. Building custom slides, Z-axis stages, or upgrading existing systems.
Dovetail Guide Block Features an integrated male or female dovetail for robust, high-stiffness linear motion. High-load instrument bases, traditional machine tool ways.
Vee Guide Block Includes a precision V-groove for guiding on round shafts or as part of a kinematic mount. Optical alignment systems, rotary-to-linear guidance.
Applications
This component is critical in industries where precision and non-magnetic properties are non-negotiable.
  • Medical & Analytical Imaging: MRI patient bed guides, CT/PET scanner gantry components. Non-magnetic property is safety-critical.
  • Semiconductor Manufacturing: Stages for wafer inspection equipment, reticle handlers, and mask aligners. Wear resistance ensures constant accuracy.
  • Precision Metrology: Base components for coordinate measuring machines (CMM), laser interferometer stages, and atomic force microscopes. Stability is key to measurement integrity.
  • Aerospace & Defense: Guidance system test fixtures, inertial navigation unit mounts. High density and damping improve performance.
Non-Magnetic Ultra-Precision Tungsten Carbide Guide Block with High Wear Resistance for Sensitive Environments 0
