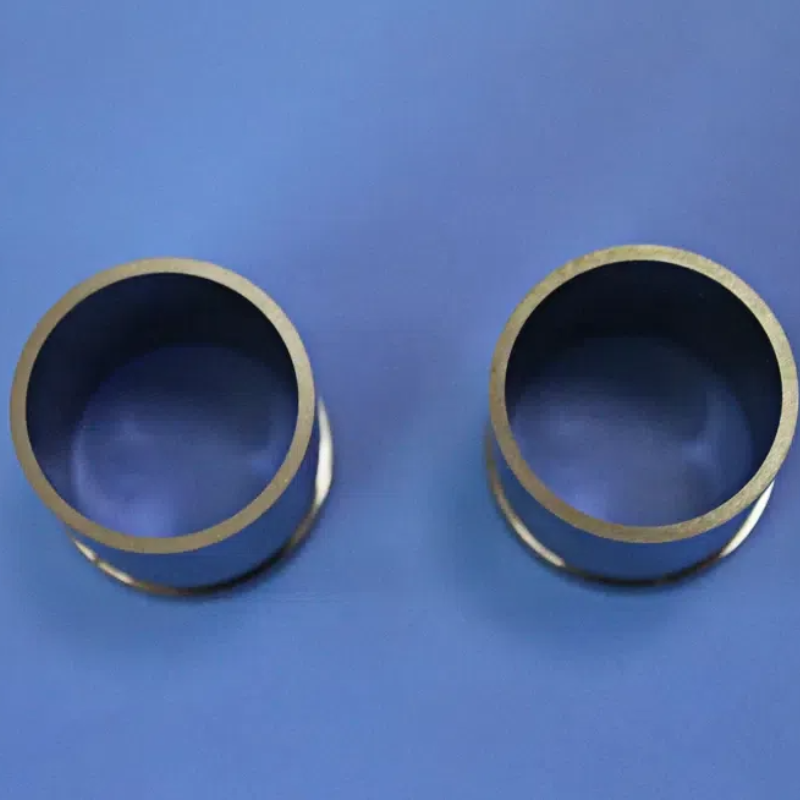

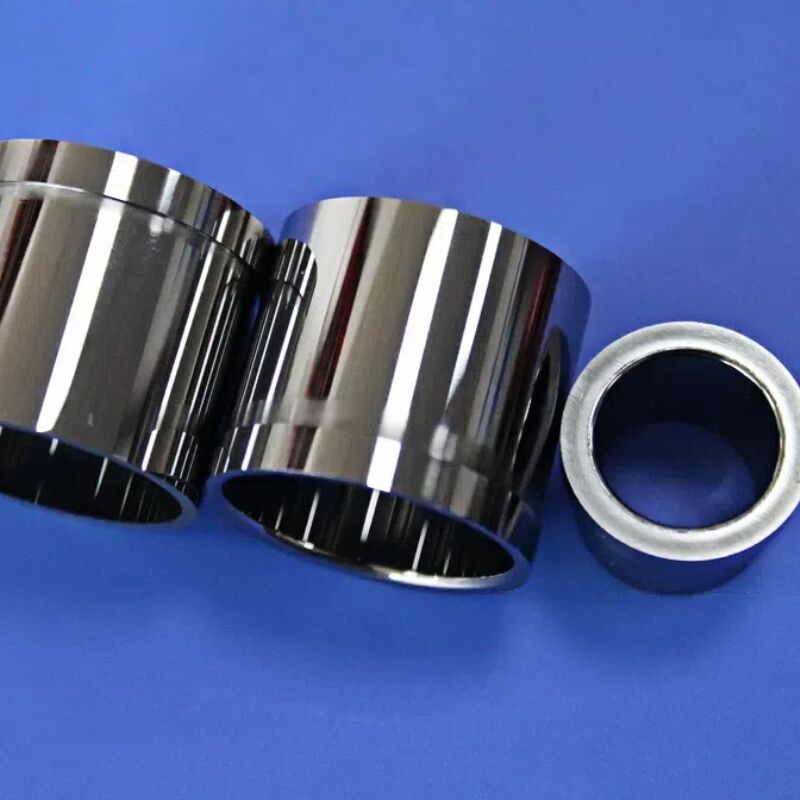

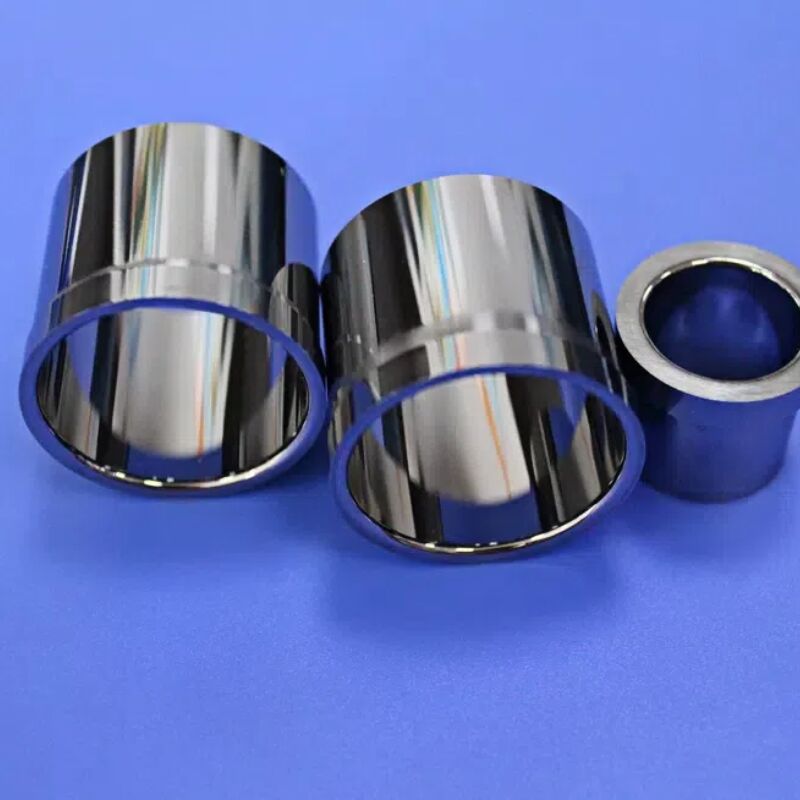

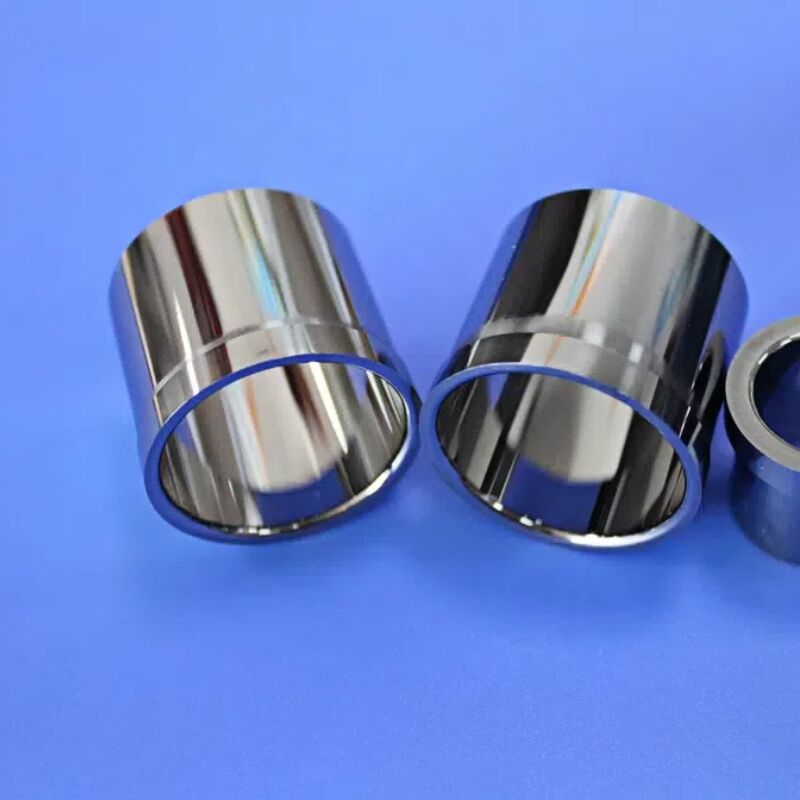

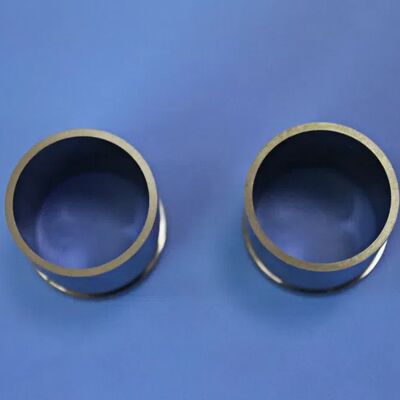

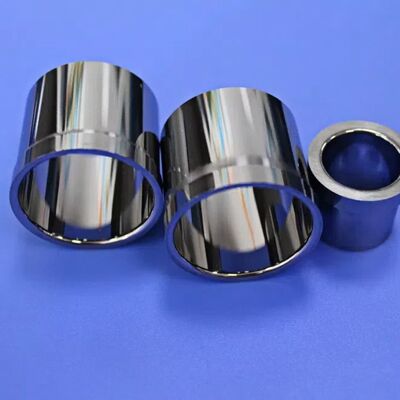

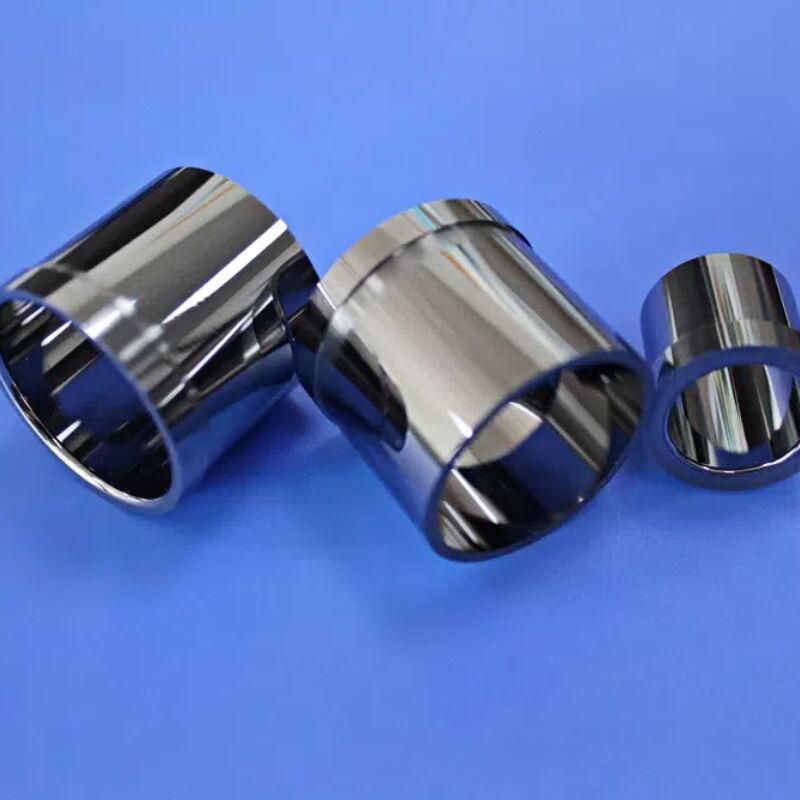

WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications
WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications

WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Sanxin
Sertifika: ISO 9001:2015
Model numarası: SX1281
Ödeme & teslimat koşulları:
Min sipariş miktarı: 2
Ambalaj bilgileri: Karton kutu
Teslim süresi: 5-25 gün
Ödeme koşulları: L/C,T/T,Western Union
Şimdi başvurun
  • Detay Bilgi
  • Ürün Açıklaması

Detay Bilgi
İşletme Türü: Üretici Malzeme: %100 orijinal malzeme
Şekil: çizim üzerine çeşitli şekil Tane büyüklüğü: Mikron altı ölçekten mikron ölçeğine
Çalışma Hızı: Yüksek kesme hızı özelliği Gelenek: Evet
Yüzey İşlemi: Pürüzsüz, Parlak, Ayna gibi cilalı Yüzey bitirme: Frezelenmiş ve cilalanmış
ısı dayanıklılığı: 1000 ° C&#39;ye kadar İşleme: Yüksek hassasiyet
Karbür Sınıfı: K10, K20, K30 vb. Ürün adı: Çimentolu Karbür Alet
Uygulamalar: Aşınmaya dayanıklı, korozyona dayanıklı Ürün Tipi: alet
Vurgulamak:

Permeability <1.002 Precision Locating Component

,

Inner Bore Tolerance ±0.001mm Carbide Inner Diameter Ring

,

Zero Magnetic Interference Non-Magnetic ID Ring

Ürün Açıklaması

WC-Ni Zero Magnetic Interference Precision Locating Component For Semiconductor & Medical
WC-Ni Zero Magnetic Interference Precision Locating Component For Semiconductor & Medical
-- --Permeability <1.002 * Inner Bore Tolerance ±0.001mm * MRI & Semiconductor Grade
When Precision Location Meets Magnetic Field Interference
Engineered with a WC-Ni zero-magnetic formulation, our carbide inner diameter rings deliver absolute magnetic immunity (Permeability <1.002) and sub-micron bore accuracy. They are the ultimate solution for precision fixturing, guiding, and sealing in MRI equipment, semiconductor wafer handling, and aerospace systems, eliminating the risks of magnetic attraction and positional drift inherent in conventional materials.
Advanced Material Technology:
  • Base Material: WC-10Ni Zero-Magnetic Grade Carbide
  • Magnetic Properties:
    • Permeability (μ): <1.002
    • Remanence (Br): <0.03 mT
    • Coercivity (Hc): <10 A/m
  • Physical & Mechanical Properties:
    • Hardness: 90 - 92 HRA (Equivalent to 1750-1850 HV)
    • Density: 14.8 - 15.0 g/cm³
    • Thermal Expansion Coefficient: 5.5 × 10⁻⁶ /K
    • Compressive Strength: >4500 MPa
Performance Comparison:
Parameter Our Non-Magnetic ID Ring Stainless Steel 316 Ring Standard Carbide Ring Key Advantage
Permeability (μ) < 1.002 ~1.02 - 1.05 ~1.5 - 2.0 Zero Magnetic Pull Force
ID Tolerance ± 0.001mm (H5) ±0.01mm (IT7) ±0.005mm (H6) 10x Higher Precision
Wear Life > 5x Longer Baseline 2x Longer Maximizes Uptime
Thermal Stability 0.001mm/100 °C 0.012mm/100°C 0.003mm/100°C Stable in Thermal Cycles
Corrosion Resistance Excellent Good Good Suitable for Harsh Media
Target Industries & Applications:
Semiconductor & Electronics
  • Wafer Handling & Alignment: Precision locating rings in wafer chucks and stages.
  • Vacuum Robotics: Wear-resistant, non-magnetic bushings for EFEM and transfer robots.
  • Metrology Equipment: Reference rings for precision measuring instruments.
Medical & Life Sciences
  • MRI & CT Scanner Components: Non-magnetic guides, bearings, and spacers inside the bore.
  • Surgical Robotics: Precision joints and articulation rings requiring zero EMI.
  • Analytical Instruments: Sample holders and rotors in mass spectrometers.
Aerospace & Defense
  • Guidance System Components: Stable, non-magnetic housings and spacers.
  • Satellite Mechanisms: Bearings and isolation rings for reaction wheels and antennas.
High-End Research
  • Particle Physics: Beamline components and experimental fixtures.
  • Materials Science: Fixtures for sputtering systems and vacuum furnaces.
WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications 0
