Ana sayfa ÜrünlerTungsten Karbür BarAnti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance
Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance
Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance

Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance

Ürün ayrıntıları:
Menşe yeri: ZHUZHOU
Marka adı: Sanxin
Model numarası: SX1250
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Teslim süresi: 5-25 gün
Ödeme koşulları: L/C,T/T,Western Union
Şimdi başvurun
  • Detay Bilgi
  • Ürün Açıklaması

Detay Bilgi
Diğer adı: volfram metal çubuk Malzemeler: % 100 bakire volfram ve kobalt
Hizmet: Özelleştirilmiş Mevcut ISO: K10,K20,K30
Yüzey: Yüksek Cilalı Şekli: Çubuk
Deneme siparişi: Kabul edilebilir. Kimyasal stabilite: Harika.
Vurgulamak:

92HRA Tungsten Steel Piston Shaft

,

Chemical Resistance Tungsten Steel Piston Shaft

,

Chemical Stability Tungsten Steel Piston Shaft

Ürün Açıklaması

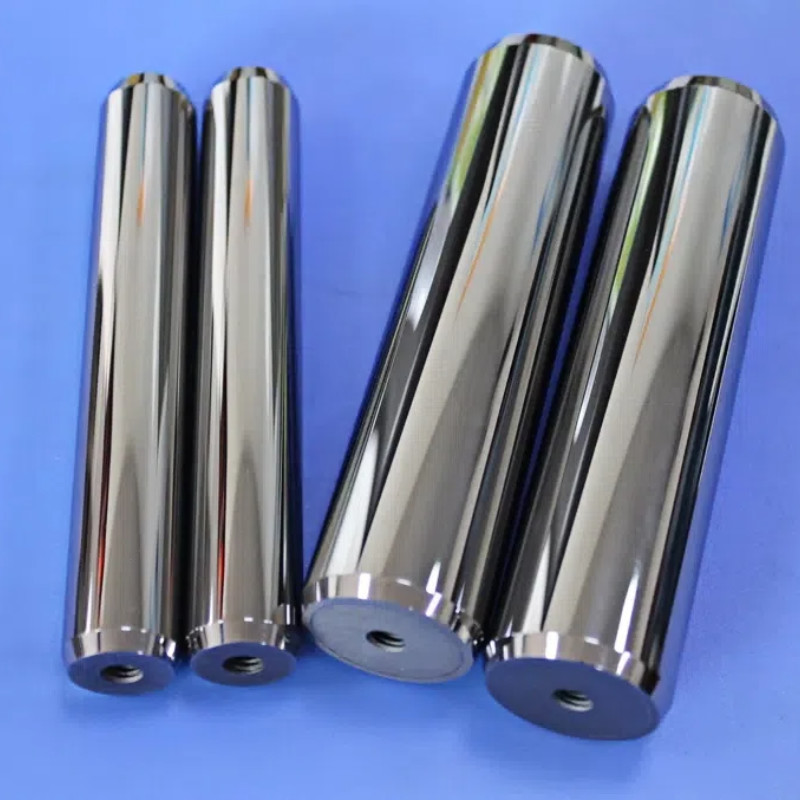

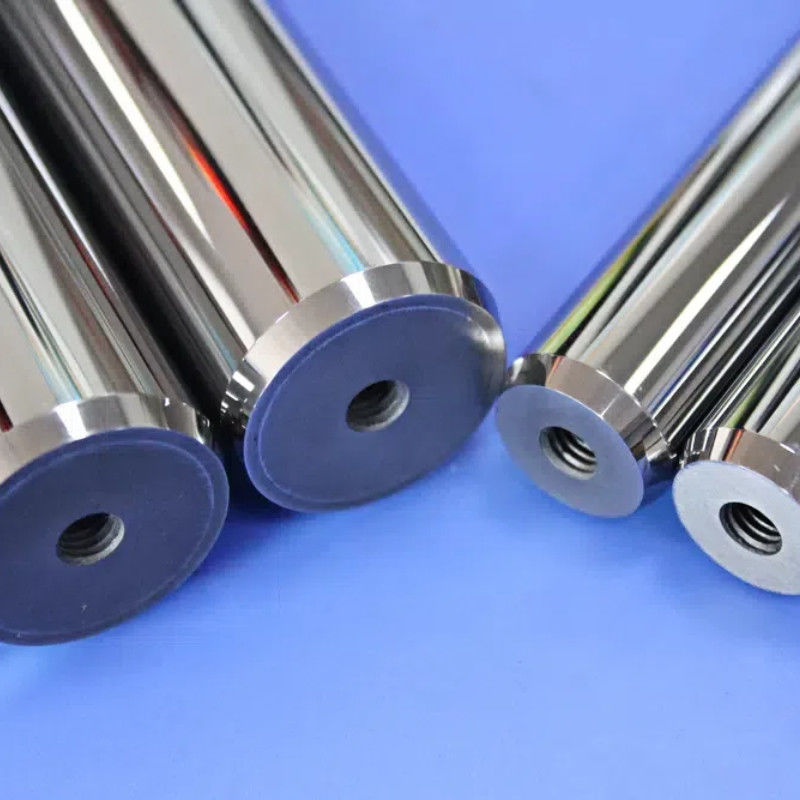

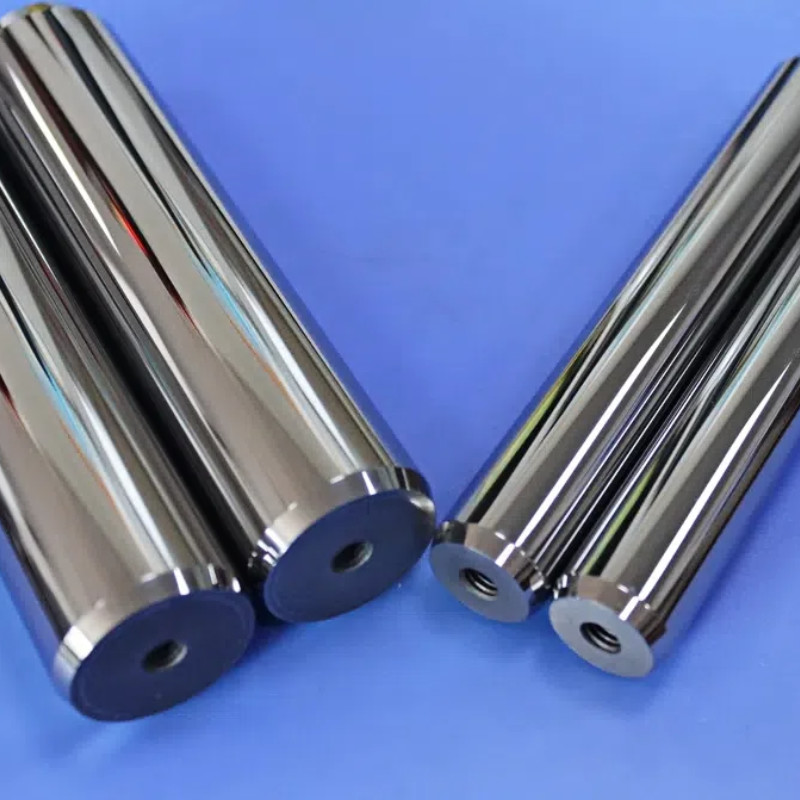

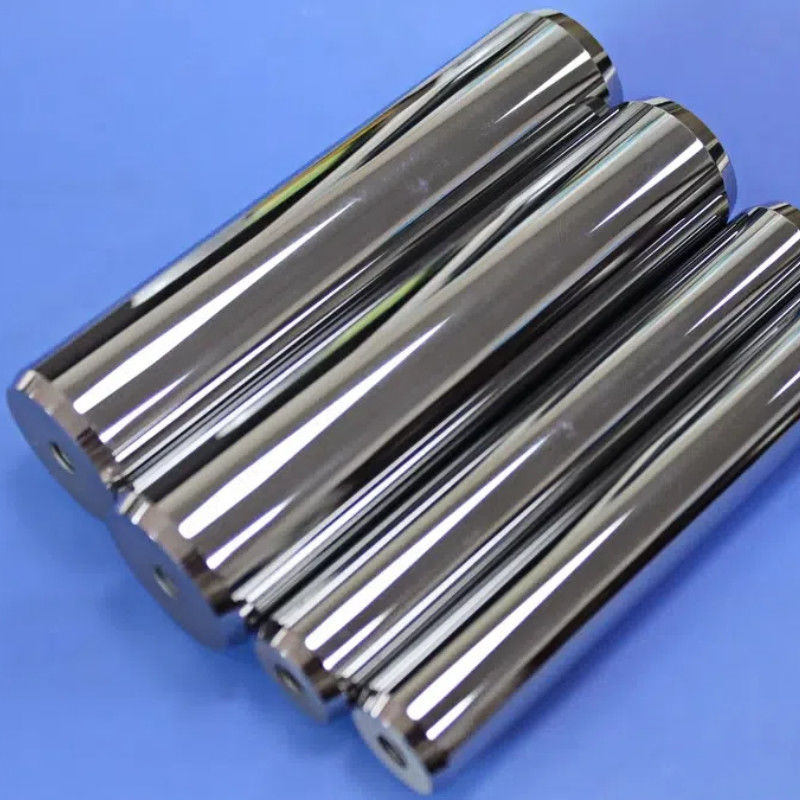

Anti-hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft


Traditional alloy piston shafts Disruptive value of this product
65HRC hardness → micro deformation accumulation under high pressure 92HRA hardness tungsten carbide → 97% reduction in deformation
Thread stress concentration → fracture risk ↑ Rolling reinforced thread → 300% increase in fatigue life
Hydrogen sulfide corrosion → seal failure Nano sealing surface → Leakage rate <0.001mL/min


Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance 0


Material composition:


▸ Material composition: 94% WC + 6% Co nanopowder (D50=0.5μm)
▸ Sintering process: low-pressure SPS sintering (1200℃/50MPa)
▸ Grain size: 0.8-1.2μm (breaking the 3μm limit of traditional sintering)
▸ Matrix hardness: 92.5HRA


Applications:


► Energy exploration
- Shale gas fracturing compressor: Resistant to 10,000ppm H₂S intergranular corrosion
- Supercritical CO₂ compression: Resistant to 31MPa/110℃ phase change shock

► Chemical extreme environment
- Hydrofluoric acid reactor compressor: Resistant to HF vapor corrosion (＞200℃)
- Liquid chlorine delivery system: No brittle fracture at -34℃ low temperature

► Aerospace field
- Aerospace fuel booster pump: Stable operation at -196℃ in liquid oxygen environment
- Nuclear-grade helium circulation compressor: Resistant to neutron irradiation embrittlement


Etiket:

Tungsten karbür çubuk

Tungsten karbür yuvarlak çubuk

Tungsten karbür çubuk
